· This product is made by advanced high-tech production
craft procedures, with novel appearance, sanitary integration, environmental
protection and can save energy.
· This product executes Iso:9001 international standard as well as GB/T16666-1996 and GBT8688-1998

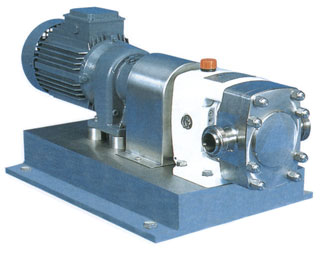

· ZB3A series rotary lobe pump model A adopts collocation structure of common motor, it has to be equipped with transducer.
· Transducer speed regulating is necessary to be equipped when using, the best speed regulating range is 200~500 rpm.
· Rotary lobe pump adopts outboard bearing which is lubricated independently, it is allowed to transport various non-lubrication mediums.
· Rotary lobe pump adopts synchronous gear to drive, the turning parts do not keep in touch each other, prolong service life.
· Choose different materials can transport different corrosive mediums.
· Mixed transportation of solid, gas and liquid is allowed.
Technical parameter:
|
Product
model Model A |
Exhaust volume/ 100 rotates （L） |
Rotate
speed of motor （r/min） |
Motor power （Kw) |
|
Diameters
of inlet and outlet tube （mm） |
Corresponding
flux （L） |
|
ZB3A-6
|
6
|
0.75
|
885 |
200~500
|
Ø25×1.5
|
650~1600
|
|
ZB3A-8
|
8
|
1.5
|
910
|
Ø25×1.5
|
850~2160
|
|
|
ZB3A-12
|
12
|
2.2
|
Ø38×1.5
|
1300~3200
|
||
|
ZB3A-20
|
20
|
3
|
940
|
Ø38×1.5
|
2100~5400
|
|
|
ZB3A-30
|
30
|
4
|
200~400
|
Ø42×1.5
|
3200~6400
|
|
|
ZB3A-36
|
36
|
5.5
|
960 |
Ø42×1.5
|
3800~7600
|
|
|
ZB3A-52
|
52
|
Ø51×1.5
|
5600~11000 |
|||
|
ZB3A-66
|
66
|
7.5
|
Ø63.5×2
|
7100~14000 |
||
|
ZB3A-78
|
78
|
Ø63.5×2
|
9000~18000 |
|||
|
ZB3A-100
|
100
|
11 |
970 |
Ø76×2
|
11000~22000 |
|
|
ZB3A-135
|
135
|
Ø89×2
|
15000~30000 |
|||
|
ZB3A-160
|
160
|
Ø89×2
|
17000~35000 |
|||
|
ZB3A-200
|
200
|
15
|
Ø100×2
|
20000~43000 |
